Pytorch Basic Code (DDP)

Dataset, DataLoader, Train, Attention, ...

Pytorch Basic Code (DistributedDataParallel ver.)

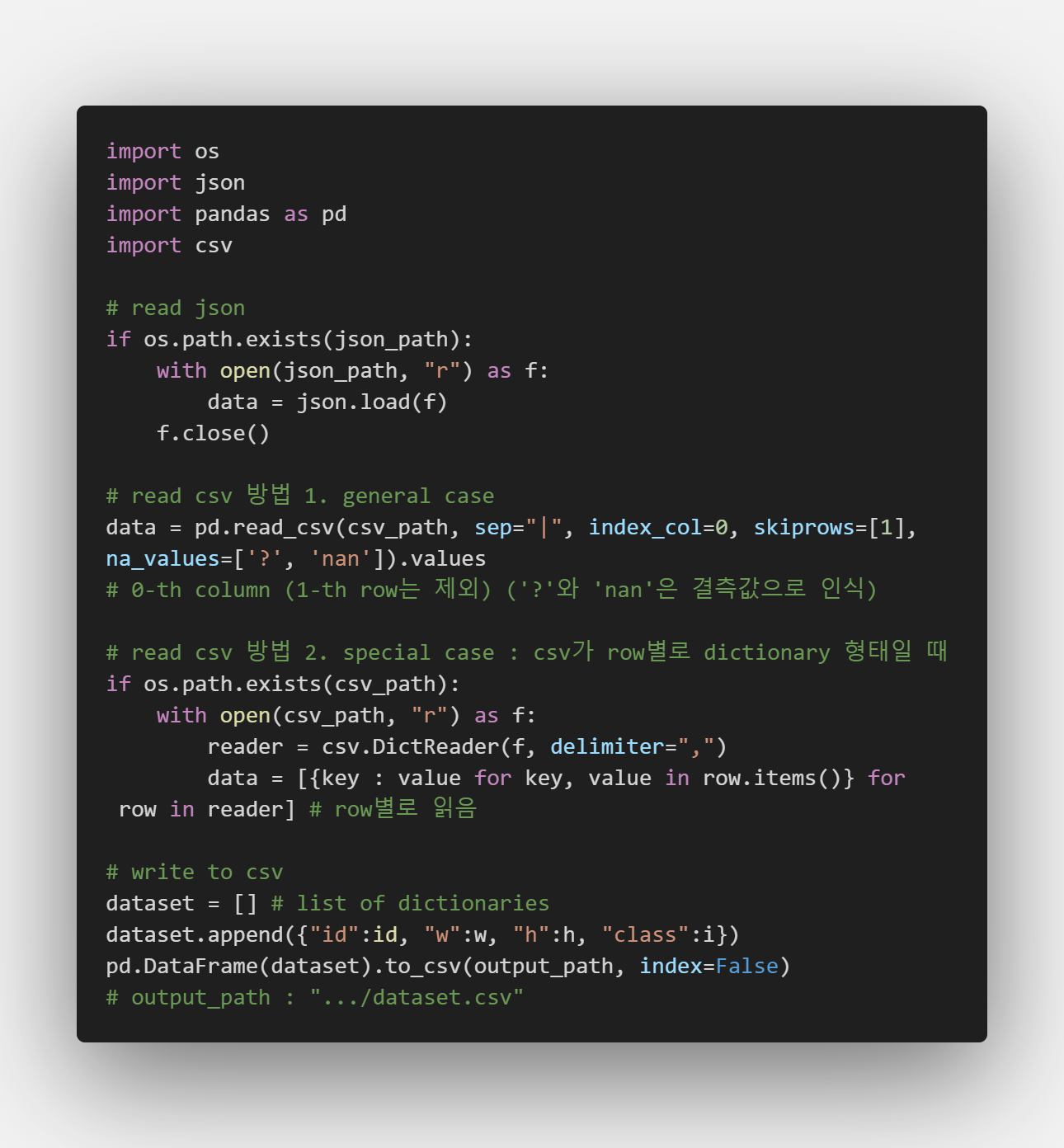

Deal with json, image, csv

import os
import json
import pandas as pd
import csv
from PIL import Image
import cv2

# read json
if os.path.exists(json_path):
    with open(json_path, "r") as f:
        data = json.load(f)
    f.close()

# read image 방법 1.
img = Image.open(image_path).convert('RGB') # PIL image object in range [0, 255]
img.show()

# read image 방법 2.
img = cv2.imread(image_path) # np.ndarray of shape (H, W, C) in range [0, 255] in BGR mode
cv2.imshow('Image', img)
cv2.waitKey(0)
cv2.destroyAllWindows()

# read csv 방법 1. general case
data = pd.read_csv(csv_path, sep="|", index_col=0, skiprows=[1], na_values=['?', 'nan']).values # 0-th column (1-th row는 제외) ('?'와 'nan'은 결측값으로 인식)

# read csv 방법 2. special case : csv가 row별로 dictionary 형태일 때
if os.path.exists(csv_path):
    with open(csv_path, "r") as f:
        reader = csv.DictReader(f, delimiter=",")
        data = [{key : value for key, value in row.items()} for row in reader] # row별로 읽음

# write to csv
dataset = [] # list of dictionaries
dataset.append({"id":id, "w":w, "h":h, "class":i})
pd.DataFrame(dataset).to_csv(output_path, index=False) # output_path : ".../dataset.csv"

Convert to Tensor

data.py의 CustomDataset(torch.utils.data.Dataset)에서 image는 shape (C, H, W) tensor여야 하기 때문에
PIL.Image.open() 또는 cv2.imread()로 얻은
PIL image object 또는 np.ndarray를 적절한 shape 및 range의 tensor로 변환해주어야 한다

PIL_img = Image.open(image_path).convert('RGB') # PIL image object of size (W, H) in range [0, 255]

# 방법 1. torchvision.transforms.ToTensor()
transform = torchvision.transforms.Compose([
    torchvision.transforms.Resize((256, 256)),
    torchvision.transforms.ToTensor() # convert to tensor in range [0., 1.]
])
img = transform(PIL_img) # tensor of shape (C, H, W) in range [0., 1.]

# 방법 2. np.array(), torch.tensor()
img = np.array(PIL_img) # np.ndarray of shape (H, W, C) in range [0., 255.]
img = torch.tensor(img.transpose((2, 0, 1)).astype(float)).mul_(1.0) / 255.0 # tensor of shape (C, H, W) in range [0., 1.]

# 방법 3. getdata(), torch.tensor()
img_data = PIL_img.getdata()
img = torch.tensor(img_data, dtype=torch.float32) # tensor of shape (H*W*C,) in range [0, 255]
img = img.view(PIL_img.size[1], PIL_img.size[0], 3).permute(2, 0, 1) / 255.0 # tensor of shape (C, H, W) in range [0., 1.]

img = cv2.imread(image_path) # np.ndarray of shape (H, W, C) in range [0., 255.]

img = torch.tensor(img.transpose((2, 0, 1)).astype(float)).mul_(1.0) / 255.0 # tensor of shape (C, H, W) in range [0., 1.]

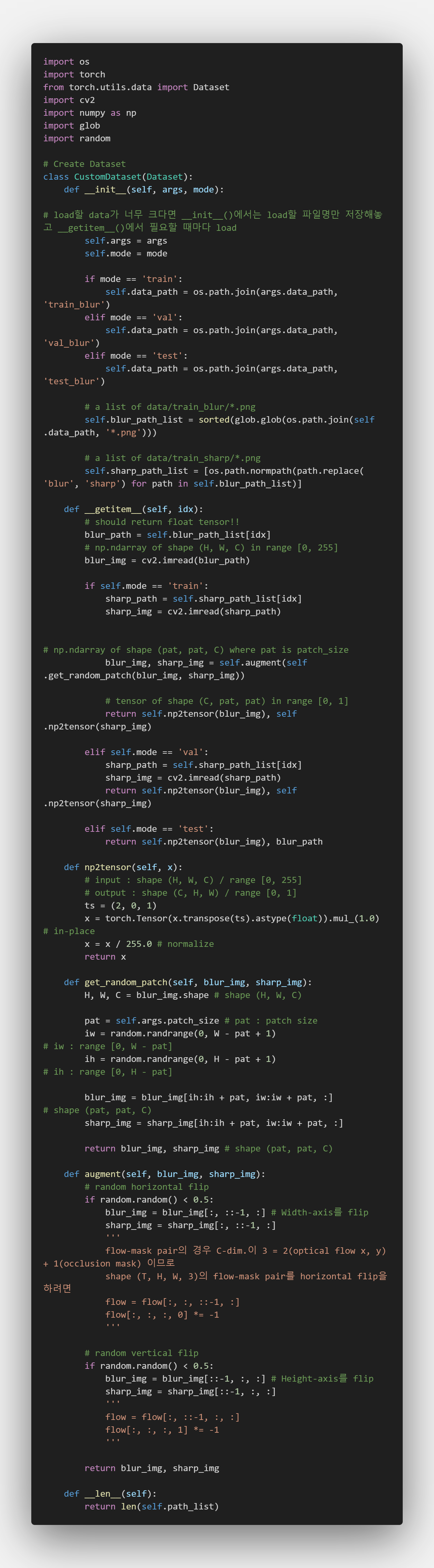

Create Dataset

import os
import torch
from torch.utils.data import Dataset
import cv2
import numpy as np
import glob
import random

# Create Dataset
class CustomDataset(Dataset):
    def __init__(self, args, mode):
        # lazy-loading :
        # load할 data가 너무 크다면 __init__()에서는 load할 파일명만 저장해놓고 __getitem__()에서 필요할 때마다 load
        self.args = args
        self.mode = mode

        if mode == 'train':
            self.data_path = os.path.join(args.data_path, 'train_blur')
        elif mode == 'val':
            self.data_path = os.path.join(args.data_path, 'val_blur')
        elif mode == 'test':
            self.data_path = os.path.join(args.data_path, 'test_blur')

        # a list of data/train_blur/*m.PNG
        self.blur_path_list = sorted(glob.glob(os.path.join(self.data_path, '*m.PNG')))

        # a list of data/train_sharp/*m.PNG
        self.sharp_path_list = [os.path.normpath(path.replace('blur', 'sharp') for path in self.blur_path_list)]

    def __getitem__(self, idx):
        # should return float tensor!!
        blur_path = self.blur_path_list[idx]
        # np.ndarray of shape (H, W, C) in range [0, 255]
        blur_img = cv2.imread(blur_path)

        if self.mode == 'train':
            sharp_path = self.sharp_path_list[idx]
            sharp_img = cv2.imread(sharp_path)

            # np.ndarray of shape (pat, pat, C) where pat is patch_size
            blur_img, sharp_img = self.augment(self.get_random_patch(blur_img, sharp_img))

            # tensor of shape (C, pat, pat) in range [0, 1]
            return self.np2tensor(blur_img), self.np2tensor(sharp_img)

        elif self.mode == 'val':
            sharp_path = self.sharp_path_list[idx]
            sharp_img = cv2.imread(sharp_path)
            return self.np2tensor(blur_img), self.np2tensor(sharp_img)

        elif self.mode == 'test':
            return self.np2tensor(blur_img), blur_path

    def np2tensor(self, x):
        # input : shape (H, W, C) / range [0, 255]
        # output : shape (C, H, W) / range [0, 1]
        ts = (2, 0, 1)
        x = torch.tensor(x.transpose(ts).astype(float)).mul_(1.0) # _ : in-place
        x = x / 255.0 # normalize
        return x

    def get_random_patch(self, blur_img, sharp_img):
        H, W, C = blur_img.shape # shape (H, W, C)

        pat = self.args.patch_size # pat : patch size
        iw = random.randrange(0, W - pat + 1) # iw : range [0, W - pat]
        ih = random.randrange(0, H - pat + 1) # ih : range [0, H - pat]

        blur_img = blur_img[ih:ih + pat, iw:iw + pat, :] # shape (pat, pat, C)
        sharp_img = sharp_img[ih:ih + pat, iw:iw + pat, :]

        return blur_img, sharp_img # shape (pat, pat, C)

    def augment(self, blur_img, sharp_img):
        # random horizontal flip
        if random.random() < 0.5:
            blur_img = blur_img[:, ::-1, :] # Width-axis를 flip
            sharp_img = sharp_img[:, ::-1, :]
            '''
            flow-mask pair의 경우 C-dim.이 3 = 2(optical flow x, y) + 1(occlusion mask) 이므로
            shape (T, H, W, 3)의 flow-mask pair를 horizontal flip을 하려면
            flow = flow[:, :, ::-1, :]
            flow[:, :, :, 0] *= -1
            '''

        # random vertical flip
        if random.random() < 0.5:
            blur_img = blur_img[::-1, :, :] # Height-axis를 flip
            sharp_img = sharp_img[::-1, :, :]
            '''
            flow = flow[:, ::-1, :, :]
            flow[:, :, :, 1] *= -1
            '''

        return blur_img, sharp_img

    def __len__(self):
        return len(self.path_list)

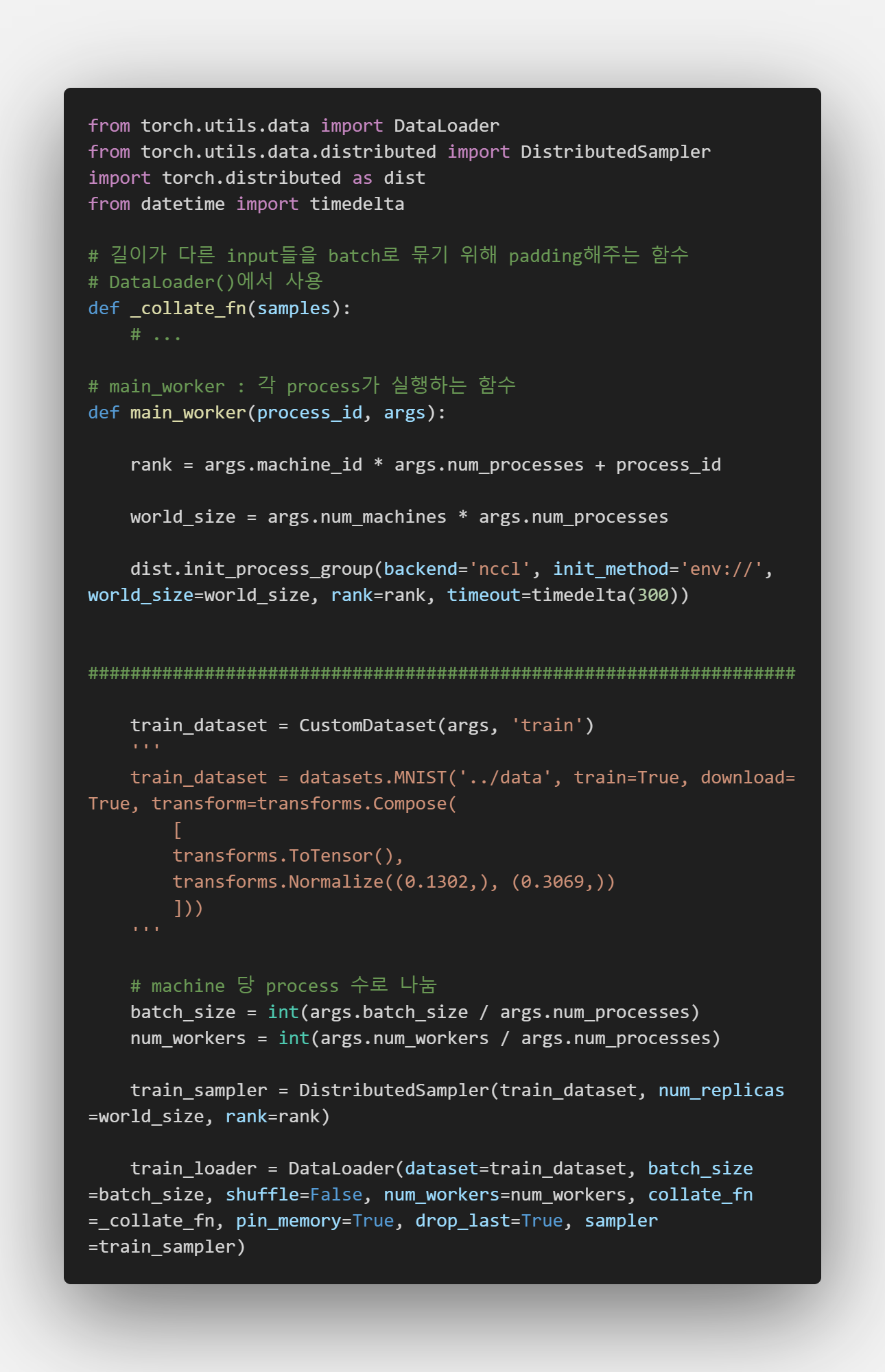

DataLoader

from torch.utils.data import DataLoader
from torch.utils.data.distributed import DistributedSampler
import torch.distributed as dist
from datetime import timedelta

def _collate_fn(samples):
    # ...

# main_worker : 각 process가 실행하는 함수
def main_worker(process_id, args):

    rank = args.machine_id * args.num_processes + process_id

    world_size = args.num_machines * args.num_processes

    dist.init_process_group(backend='nccl', init_method='env://', world_size=world_size, rank=rank, timeout=timedelta(300))

    ###################################################################

    # for epoch in range ... 밖에서
    train_dataset = CustomDataset(args, 'train')
    '''
    train_dataset = datasets.MNIST('../data', train=True, download=True, transform=transforms.Compose(
        [
        transforms.ToTensor(),
        transforms.Normalize((0.1302,), (0.3069,))
        ]))
    '''

    # machine 당 process 수로 나눔
    batch_size = int(args.batch_size / args.num_processes)
    num_workers = int(args.num_workers / args.num_processes)

    # for epoch in range ... 안에서
    train_sampler = DistributedSampler(train_dataset, num_replicas=world_size, rank=rank)

    train_loader = DataLoader(dataset=train_dataset, batch_size=batch_size, shuffle=False, num_workers=num_workers, collate_fn=_collate_fn, pin_memory=True, drop_last=True, sampler=train_sampler)

Train

  1. model initialize, and set cuda, and parallelize
    • nn.parallel.DistributedDataParallel :
      각 model 복사본은 각자의 optimizer를 이용해 gradient를 구하고
      rank=0의 process와 통신하여 gradient의 평균을 구해서 backpropagation 진행
      GIL(global interpreter lock)의 제약을 해결
  2. wandb init
    • wandb.init() : wandb 초기화

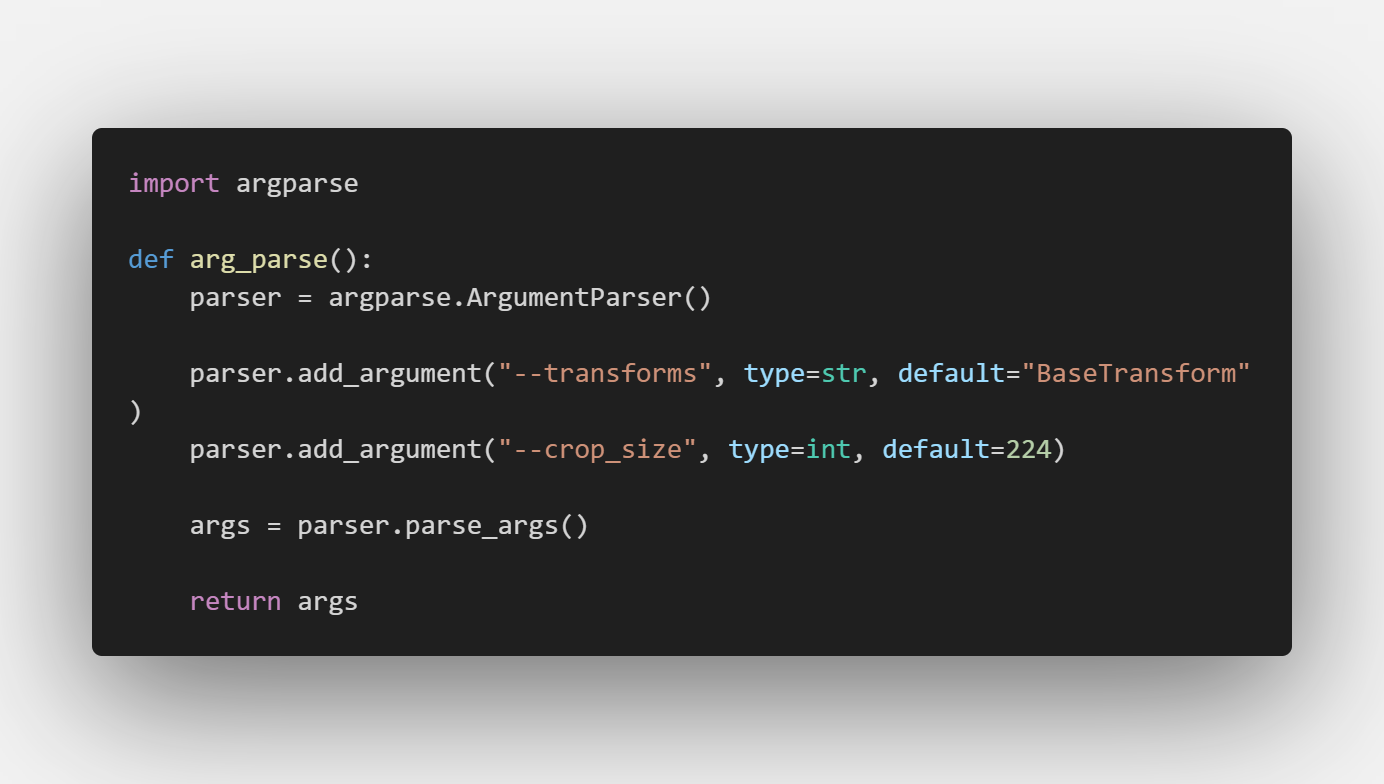

    • config=vars(args) : vars(args)는 args 객체의 dict 속성을 반환

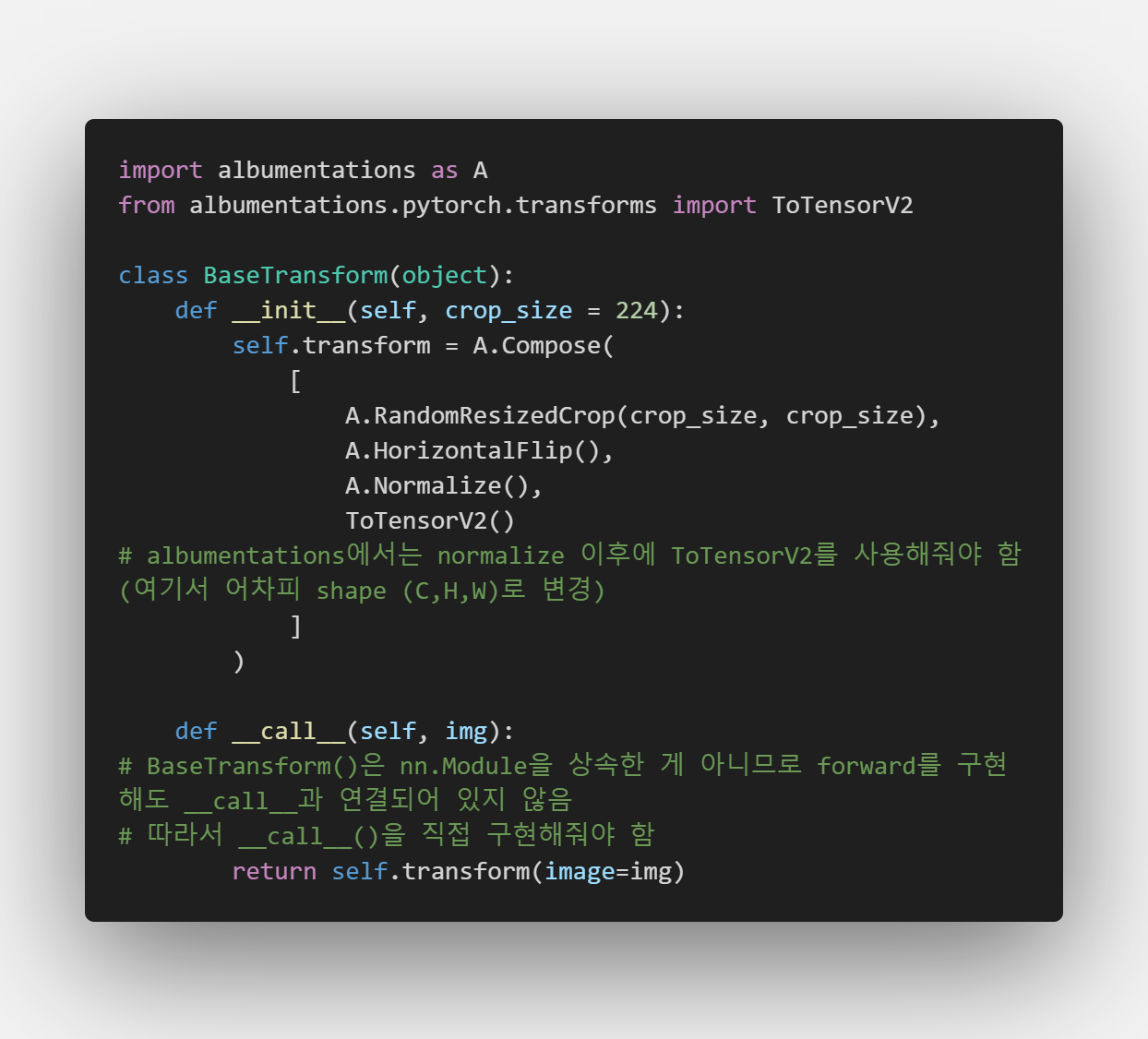

      {‘transforms’ : ‘BaseTransform’, ‘crop_size’ : 224}과 같이 반환
      - wandb.watch() : wandb 설정
    • log=’all’ : 모든 param.의 gradient를 기록
    • log_freq : arg.log_interval-번째 batch마다 log 기록 - wandb.log() : wandb 기록
    • wandb.log(dict)
  3. optimizer, scheduler initialize
  4. load checkpoint
  5. train with barrier
    • torch.distributed.barrier() :
      분산 학습 환경에서
      모든 process가 이 장벽에 도달할 때까지 대기하여
      모든 process가 synchronize된 상태에서 훈련이 진행되도록 함
    • torch.cuda.empty_cache() :
      더 이상 사용하지 않는 tensor들을 GPU cached memory에서 해제
      장점 : GPU memory 확보
      단점 : 너무 자주 호출하면 메모리 할당/해제에 따른 성능 저하 발생
    • train :
      args.accumulation_steps만큼 loss를 누적한 뒤 backward
      args.accumulation_steps마다 gradient 및 measurement 초기화, rank=0 logging

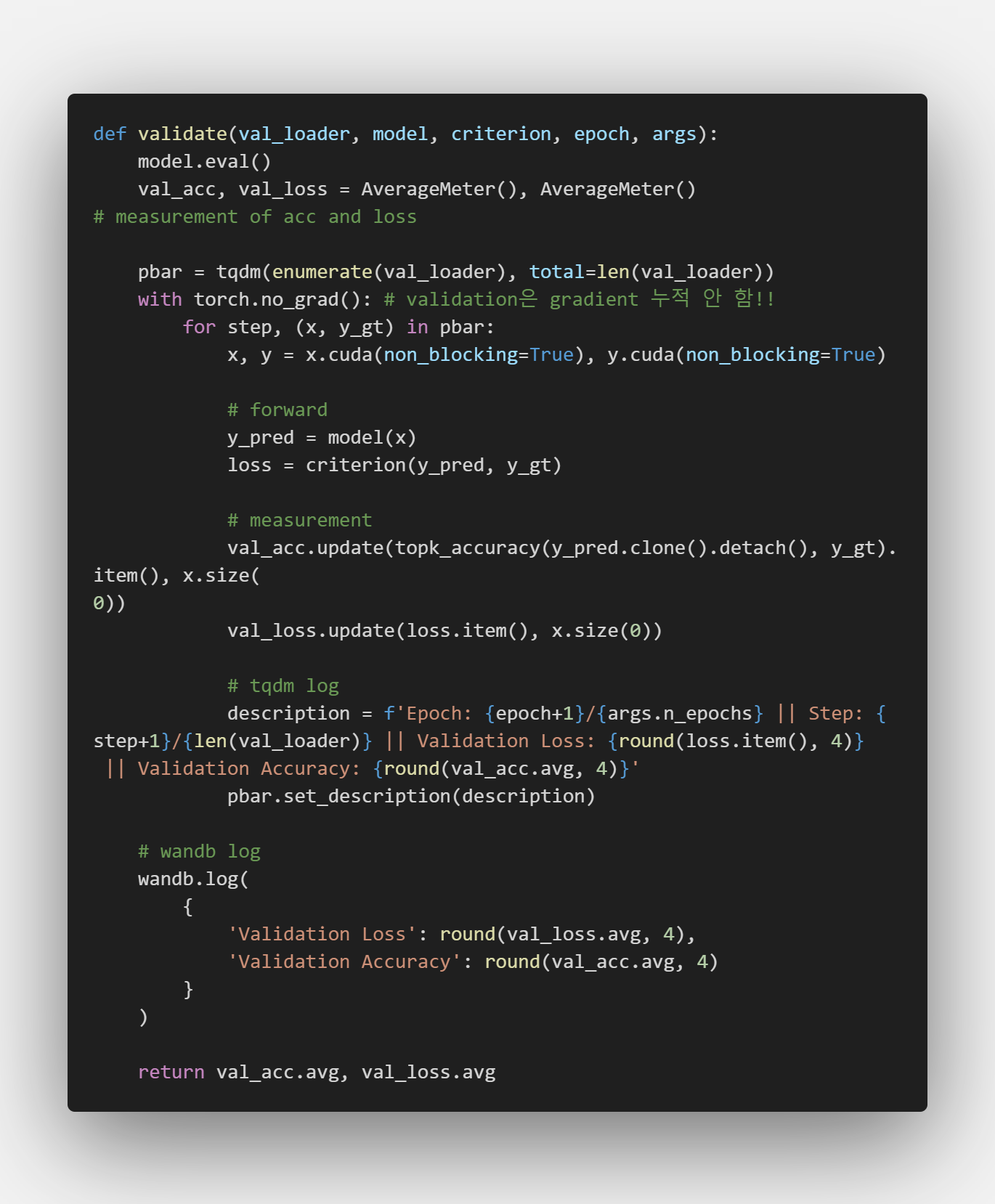

    • validation :
      with torch.no_grad(): 로 gradient 누적 안 함!
      또는
      with torch.set_grad_enabled(false): 로 gradient 누적 안 함!
    • model.state_dict() :
      torch.save() 또는 wandb.log()로 model.state_dict()를 별도 파일에 저장 가능
      model_param = copy.deepcopy(model.state_dict())로 model.state_dict()를 코드 내 변수에 저장 가능
  6. wandb and distributed finish

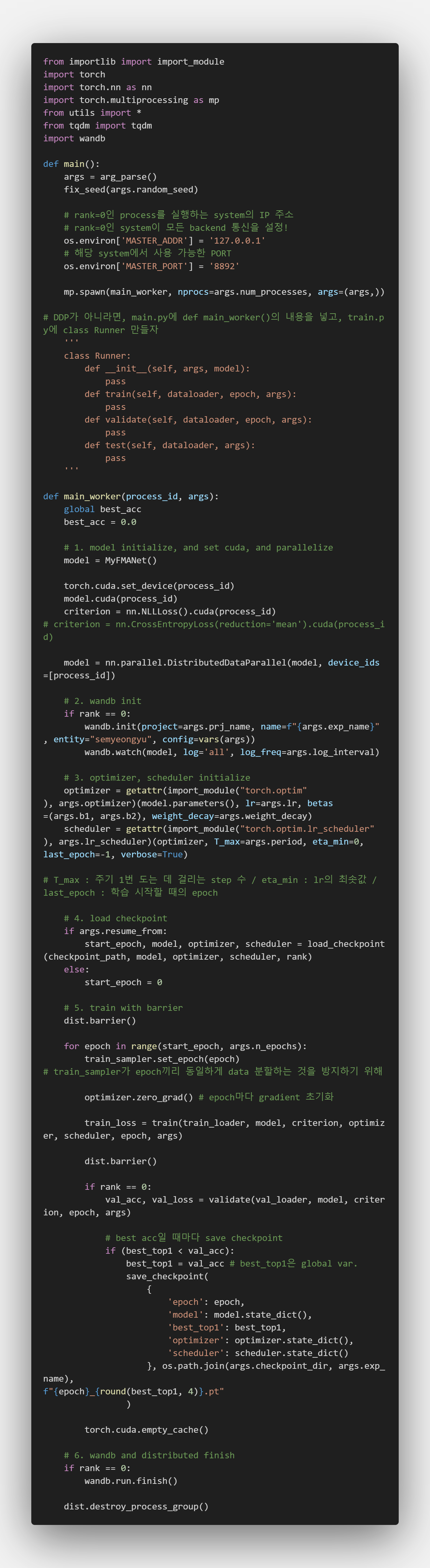

from importlib import import_module
import torch
import torch.nn as nn
import torch.multiprocessing as mp
from utils import *
from tqdm import tqdm
import wandb

def main():
    args = arg_parse()

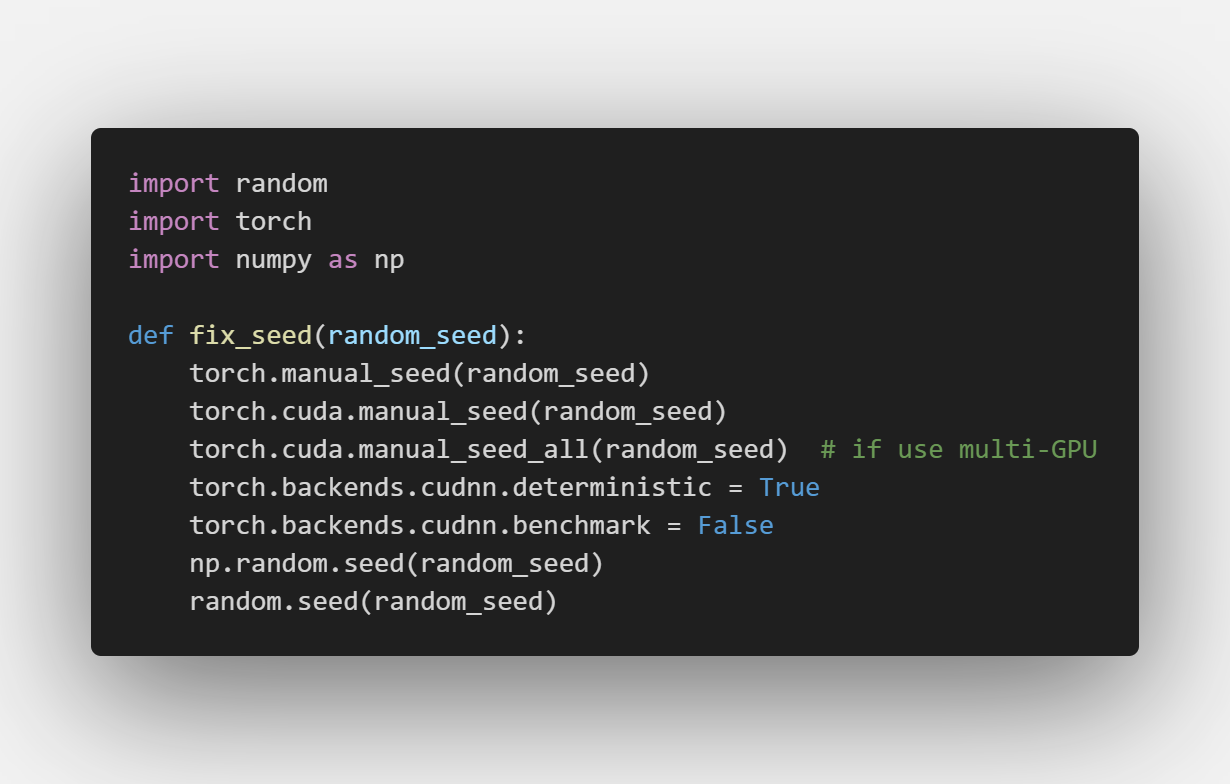

    fix_seed(args.random_seed)

    # rank=0인 process를 실행하는 system의 IP 주소
    # rank=0인 system이 모든 backend 통신을 설정!
    os.environ['MASTER_ADDR'] = '127.0.0.1'
    # 해당 system에서 사용 가능한 PORT
    os.environ['MASTER_PORT'] = '8892'

    mp.spawn(main_worker, nprocs=args.num_processes, args=(args,))
    # DDP가 아니라면, main.py에 def main_worker()의 내용을 넣고, train.py에 class Runner 만들자
    '''
    class Runner:
        def __init__(self, args, model):
            self.args = args
            self.model = model
            pass
        def train(self, dataloader, epoch):
            pass
        def validate(self, dataloader, epoch):
            pass
        def test(self, dataloader):
            pass
    '''

def main_worker(process_id, args):
    global best_acc
    best_acc = 0.0

    # 1. model initialize, and set cuda, and parallelize
    model = MyFMANet()

    torch.cuda.set_device(process_id)
    model.cuda(process_id)
    criterion = nn.NLLLoss().cuda(process_id) # criterion = nn.CrossEntropyLoss(reduction='mean').cuda(process_id)

    model = nn.parallel.DistributedDataParallel(model, device_ids=[process_id])

    # 2. wandb init
    if rank == 0:
        wandb.init(project=args.prj_name, name=f"{args.exp_name}", entity="semyeongyu", config=vars(args))
        wandb.watch(model, log='all', log_freq=args.log_interval)

    # 3. optimizer, scheduler initialize
    optimizer = getattr(import_module("torch.optim"), args.optimizer)(model.parameters(), lr=args.lr, betas=(args.b1, args.b2), weight_decay=args.weight_decay)
    scheduler = getattr(import_module("torch.optim.lr_scheduler"), args.lr_scheduler)(optimizer, T_max=args.period, eta_min=0, last_epoch=-1, verbose=True)
    # T_max : 주기 1번 도는 데 걸리는 최대 iter. 수 / eta_min : lr의 최솟값 / last_epoch : 학습 시작할 때의 epoch

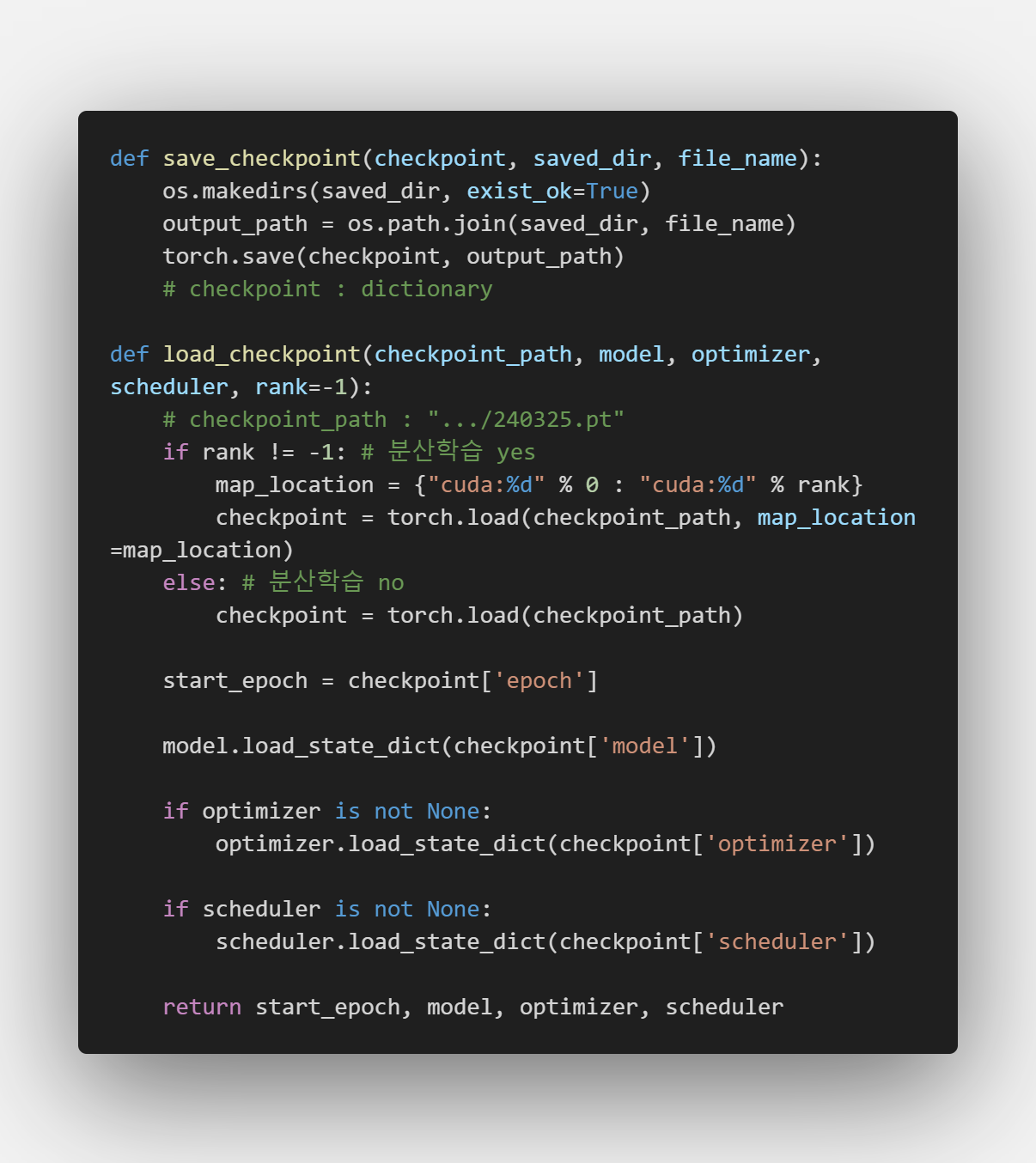

    # 4. load checkpoint
    if args.resume_from:
        start_epoch, model, optimizer, scheduler = load_checkpoint(args.checkpoint_path, model, optimizer, scheduler, rank)
    else:
        start_epoch = 0

    # 5. train with barrier
    dist.barrier()

    for epoch in range(start_epoch, args.n_epochs):
        train_sampler.set_epoch(epoch) # train_sampler가 epoch끼리 동일하게 data 분할하는 것을 방지하기 위해

        optimizer.zero_grad() # epoch마다 gradient 초기화

        train_loss = train(train_loader, model, criterion, optimizer, scheduler, epoch, args)

        dist.barrier()

        if rank == 0:
            val_acc, val_loss = validate(val_loader, model, criterion, epoch, args)

            # best acc일 때마다 save checkpoint
            if (best_top1 < val_acc):
                best_top1 = val_acc # best_top1은 global var.
                save_checkpoint(
                    {
                        'epoch': epoch,
                        'model': model.state_dict(),
                        'best_top1': best_top1,
                        'optimizer': optimizer.state_dict(),
                        'scheduler': scheduler.state_dict()
                    }, os.path.join(args.checkpoint_dir, args.exp_name), f"{epoch}_{round(best_top1, 4)}.pt"
                )

        torch.cuda.empty_cache()

    # 6. wandb and distributed finish
    if rank == 0:
        wandb.finish()

    dist.destroy_process_group()

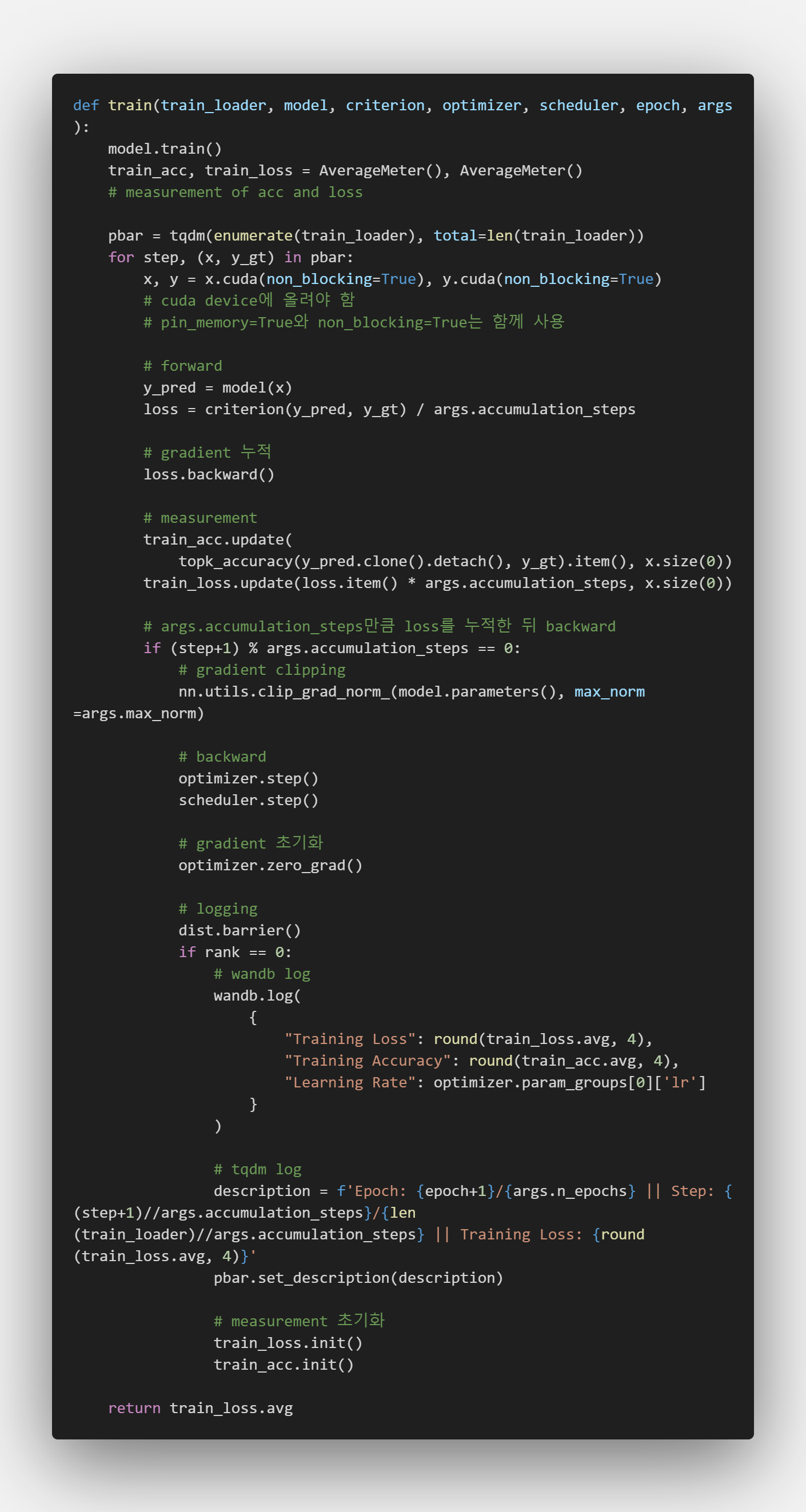

def train(train_loader, model, criterion, optimizer, scheduler, epoch, args):
    model.train()

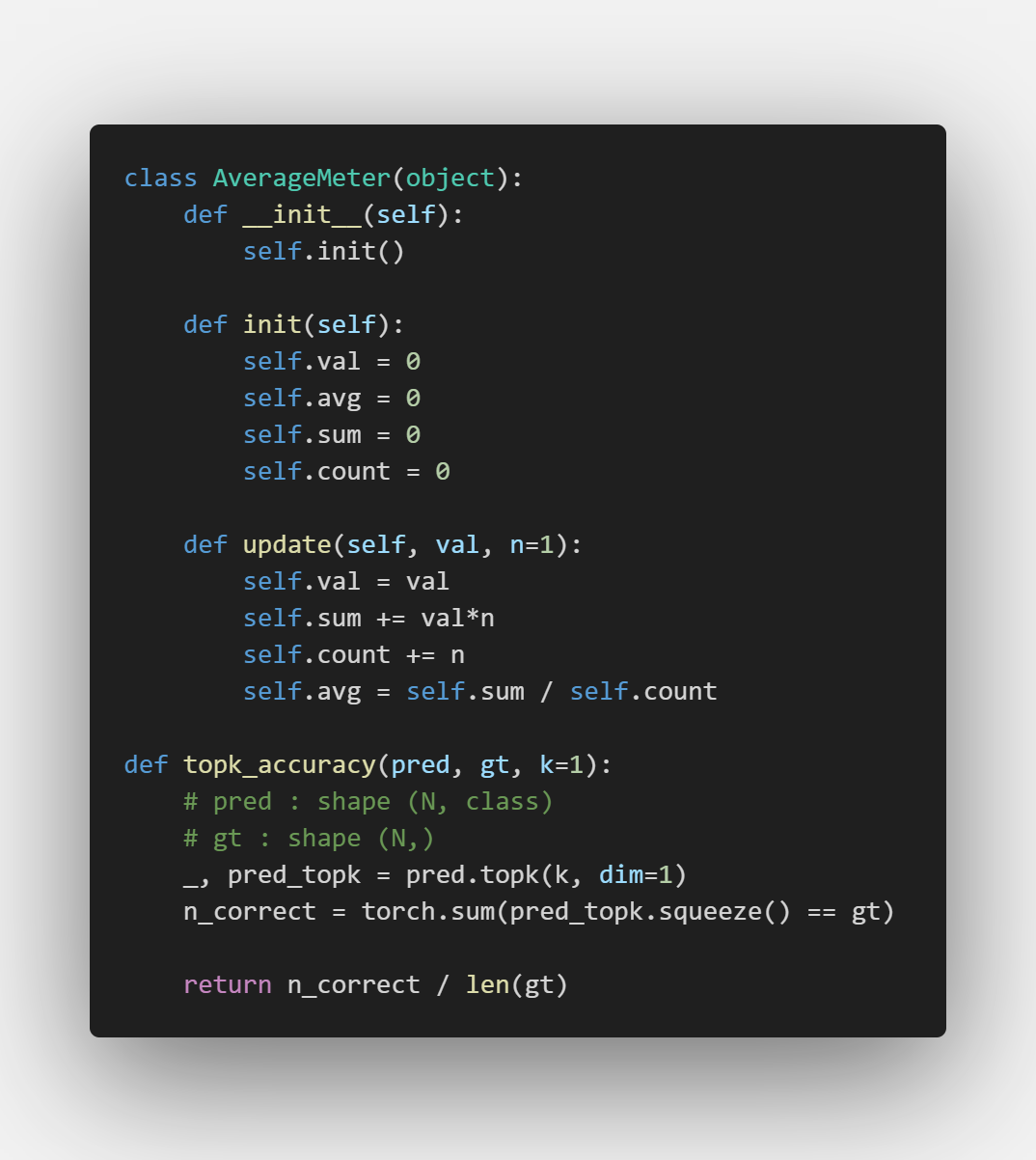

    train_acc, train_loss = AverageMeter(), AverageMeter()
    # measurement of acc and loss

    pbar = tqdm(enumerate(train_loader), total=len(train_loader))
    for step, (x, y_gt) in pbar:
        x, y_gt = x.cuda(non_blocking=True), y_gt.cuda(non_blocking=True)
        # cuda device에 올려야 함
        # pin_memory=True와 non_blocking=True는 함께 사용

        # forward
        y_pred = model(x)

        # loss divided by accumulation_steps
        loss = criterion(y_pred, y_gt) / args.accumulation_steps

        # gradient 누적
        loss.backward()

        # measurement
        train_acc.update(
            topk_accuracy(y_pred.clone().detach(), y_gt).item(), x.size(0))
        train_loss.update(loss.item() * args.accumulation_steps, x.size(0))

        # args.accumulation_steps만큼 loss를 누적한 뒤 평균값으로 backward
        if (step+1) % args.accumulation_steps == 0:
            # gradient clipping
            nn.utils.clip_grad_norm_(model.parameters(), max_norm=args.max_norm)

            # backward
            optimizer.step()
            scheduler.step()

            # gradient 초기화
            optimizer.zero_grad()

            # logging
            dist.barrier()
            if rank == 0:
                # wandb log
                wandb.log(
                    {
                        "Training Loss": round(train_loss.avg, 4),
                        "Training Accuracy": round(train_acc.avg, 4),
                        "Learning Rate": optimizer.param_groups[0]['lr']
                    }
                )

                # tqdm log
                description = f'Epoch: {epoch+1}/{args.n_epochs} || Step: {(step+1)//args.accumulation_steps}/{len(train_loader)//args.accumulation_steps} || Training Loss: {round(train_loss.avg, 4)}'
                pbar.set_description(description)

                # measurement 초기화
                train_loss.init()
                train_acc.init()

    return train_loss.avg

def validate(val_loader, model, criterion, epoch, args):
    model.eval()
    val_acc, val_loss = AverageMeter(), AverageMeter() # measurement of acc and loss

    pbar = tqdm(enumerate(val_loader), total=len(val_loader))
    with torch.no_grad(): # validation은 gradient 누적 안 함!!
        for step, (x, y_gt) in pbar:
            x, y = x.cuda(non_blocking=True), y.cuda(non_blocking=True)

            # forward
            y_pred = model(x)
            loss = criterion(y_pred, y_gt)

            # measurement
            val_acc.update(topk_accuracy(y_pred.clone().detach(), y_gt).item(), x.size(0))
            val_loss.update(loss.item(), x.size(0))

            # tqdm log
            description = f'Epoch: {epoch+1}/{args.n_epochs} || Step: {step+1}/{len(val_loader)} || Validation Loss: {round(loss.item(), 4)} || Validation Accuracy: {round(val_acc.avg, 4)}'
            pbar.set_description(description)

    # wandb log
    wandb.log(
        {
            'Validation Loss': round(val_loss.avg, 4),
            'Validation Accuracy': round(val_acc.avg, 4)
        }
    )

    return val_acc.avg, val_loss.avg

Utils

import argparse

def arg_parse():
    parser = argparse.ArgumentParser()

    parser.add_argument("--transforms", type=str, default="BaseTransform")
    parser.add_argument("--crop_size", type=int, default=224)

    args = parser.parse_args()

    return args

import random
import torch
import numpy as np

def fix_seed(random_seed):
    torch.manual_seed(random_seed)
    torch.cuda.manual_seed(random_seed)
    torch.cuda.manual_seed_all(random_seed)  # if use multi-GPU
    torch.backends.cudnn.deterministic = True
    torch.backends.cudnn.benchmark = False
    np.random.seed(random_seed)
    random.seed(random_seed)

def save_checkpoint(checkpoint, saved_dir, file_name):
    os.makedirs(saved_dir, exist_ok=True)
    output_path = os.path.join(saved_dir, file_name)
    torch.save(checkpoint, output_path)
    # checkpoint : dictionary

def load_checkpoint(checkpoint_path, model, optimizer, scheduler, rank=-1):
    # checkpoint_path : ".../240325.pt"
    if rank != -1: # 분산학습 yes
        map_location = {"cuda:%d" % 0 : "cuda:%d" % rank}
        checkpoint = torch.load(checkpoint_path, map_location=map_location)
    else: # 분산학습 no
        checkpoint = torch.load(checkpoint_path)

    start_epoch = checkpoint['epoch']

    model.load_state_dict(checkpoint['model'])

    if optimizer is not None:
        optimizer.load_state_dict(checkpoint['optimizer'])

    if scheduler is not None:
        scheduler.load_state_dict(checkpoint['scheduler'])

    return start_epoch, model, optimizer, scheduler

import albumentations as A
from albumentations.pytorch.transforms import ToTensorV2

class BaseTransform(object):
    def __init__(self, crop_size = 224):
        self.transform = A.Compose(
            [
                A.RandomResizedCrop(crop_size, crop_size),
                A.HorizontalFlip(),
                A.Normalize(),
                ToTensorV2()
# albumentations에서는 normalize 이후에 ToTensorV2를 사용해줘야 함 (여기서 어차피 shape (C,H,W)로 변경)
            ]
        )

    def __call__(self, img):
# BaseTransform()은 nn.Module을 상속한 게 아니므로 forward를 구현해도 __call__과 연결되어 있지 않음
# 따라서 __call__()을 직접 구현해줘야 함
        return self.transform(image=img)

class AverageMeter(object):
    def __init__(self):
        self.init()

    def init(self):
        self.val = 0
        self.avg = 0
        self.sum = 0
        self.count = 0

    def update(self, val, n=1):
        self.val = val
        self.sum += val*n
        self.count += n
        self.avg = self.sum / self.count

def topk_accuracy(pred, gt, k=1):
    # pred : shape (N, class)
    # gt : shape (N,)
    _, pred_topk = pred.topk(k, dim=1)
    n_correct = torch.sum(pred_topk.squeeze() == gt)

    return n_correct / len(gt)

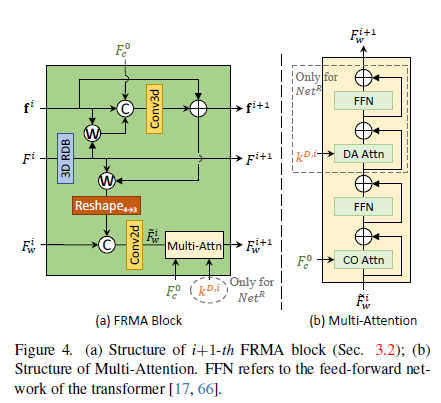

Multi-Attention

Multi-Attention :

  • CO(center-oriented) attention :
    better align \(\tilde F_{w}^{i}\) to \(F_{c}^{0}\) (center feature map of initial temporally-anchored feature)
  • DA(degradation-aware) attention :
    \(\tilde F_{w}^{i}\) becomes globally adaptive to spatio-temporally variant degradation by using degradation kernels \(K^{D}\)
import torch
import torch.nn as nn

class Attention(nn.Module):
    # Restormer (CVPR 2022) transposed-attention block
    # original source code: https://github.com/swz30/Restormer
    def __init__(self, dim, n_head, bias):
        super(Attention, self).__init__()
        self.n_head = n_head # multi-head for channel dim.
        self.temperature = nn.Parameter(torch.ones(n_head, 1, 1))
        # multi-head 별로 scale factor를 parameterize

        # W_q
        self.q = nn.Conv2d(dim, dim, kernel_size=1, bias=bias)
        self.q_dwconv = nn.Conv2d(dim, dim, kernel_size=3, stride=1, padding=1, groups=dim, bias=bias)

        # W_kv
        self.kv_conv = nn.Conv2d(dim, dim*2, kernel_size=1, bias=bias)
        self.kv_dwconv = nn.Conv2d(dim*2, dim*2, kernel_size=3, stride=1, padding=1, groups=dim*2, bias=bias)

        # W_o
        self.project_out = nn.Conv2d(dim, dim, kernel_size=1, bias=bias)

    def forward(self, x, f):
        # first input x : shape (N, C, H, W) -> makes key and value
        # second input f : shape (N, C, H, W) -> makes query
        N, C, H, W = x.shape

        # Apply W_q and W_kv
        q = self.q_dwconv(self.q(f)) # query q : shape (N, C, H, W)
        kv = self.kv_dwconv(self.kv_conv(x)) # kv : shape (N, 2*C, H, W)
        k, v = kv.chunk(2, dim=1) # key k and value v : shape (N, C, H, W)

        # Multi-Head Attention
        q = einops.rearrange(q, 'b (head c) h w -> b head c (h w)', head=self.n_head)
        # query q : shape (N, C, H, W) -> shape (N, M, C/M, H * W)
        k = einops.rearrange(k, 'b (head c) h w -> b head c (h w)', head=self.n_head)
        # key k : shape (N, C, H, W) -> shape (N, M, C/M, H * W)
        v = einops.rearrange(v, 'b (head c) h w -> b head c (h w)', head=self.n_head)
        # value v : shape (N, C, H, W) -> shape (N, M, C/M, H * W)

        # matrix mul.을 할 spatial dim.을 normalize
        q = torch.nn.functional.normalize(q, dim=-1)
        k = torch.nn.functional.normalize(k, dim=-1)

        '''
        - q @ k.transpose(-2, -1) = similarity :
          shape (N, M, C/M, C/M)
        - self.temperature = scale factor for each head :
          shape (M, 1, 1) -> shape (N, M, C/M, C/M)
        '''
        attn = (q @ k.transpose(-2, -1)) * self.temperature
        attn = attn.softmax(dim=-1) # convert to probability distribution

        out = (attn @ v) # shape (N, M, C/M, H*W)

        # Multi-Head Attention - concatenation
        out = einops.rearrange(out, 'b head c (h w) -> b (head c) h w', head=self.n_head, h=H, w=W)
        # shape (N, C, H, W)

        # Apply W_o
        out = self.project_out(out) # shape (N, C, H, W)

        return out

class LayerNorm(nn.Module):
    def __init__(self, normalized_shape):
        super(LayerNorm, self).__init__()

        # learnable param.
        self.weight = nn.Parameter(torch.ones(normalized_shape)) # shape (C,)
        self.bias = nn.Parameter(torch.zeros(normalized_shape)) # shape (C,)

    def forward(self, x):
        # x : shape (N, C, H, W)
        # LayerNorm : dim. C에 대해 normalize
        mu = x.mean(1, keepdim=True)
        sigma = x.var(1, keepdim=True, unbiased=False)
        return (x - mu) / torch.sqrt(sigma + 1e-5) * self.weight + self.bias

class MultiAttentionBlock(nn.Module):
    def __init__(self, dim, n_head, ffn_expansion_factor, bias, is_DA):
        super(MultiAttentionBlock, self).__init__()
        self.norm1 = LayerNorm(dim)
        # center-oriented attention
        self.co_attn = Attention(dim, n_head, bias)
        self.norm2 = LayerNorm(dim)
        self.ffn1 = FeedForward(dim, bias)

        if is_DA:
            self.norm3 = LayerNorm(dim)
            # degradation-aware attention
            self.da_attn = Attention(dim, n_head, bias)
            self.norm4 = LayerNorm(dim)
            self.ffn2 = FeedForward(dim, bias)

    def forward(self, Fw, F0_c, Kd):
        Fw = Fw + self.co_attn(self.norm1(Fw), F0_c)
        Fw = Fw + self.ffn1(self.norm2(Fw))

        if Kd is not None:
            Fw = Fw + self.da_attn(self.norm3(Fw), Kd)
            Fw = Fw + self.ffn2(self.norm4(Fw))

        return Fw

nn module
