Image Segmentation

• Semantic Segmentation
• Instance Segmentation
• Panoptic Segmentation

뮌헨공대 (Technical University of Munich)에서 공부한

[IN2375 Computer Vision - Detection, Segmentation and Tracking] 컴퓨터비전 노트 정리

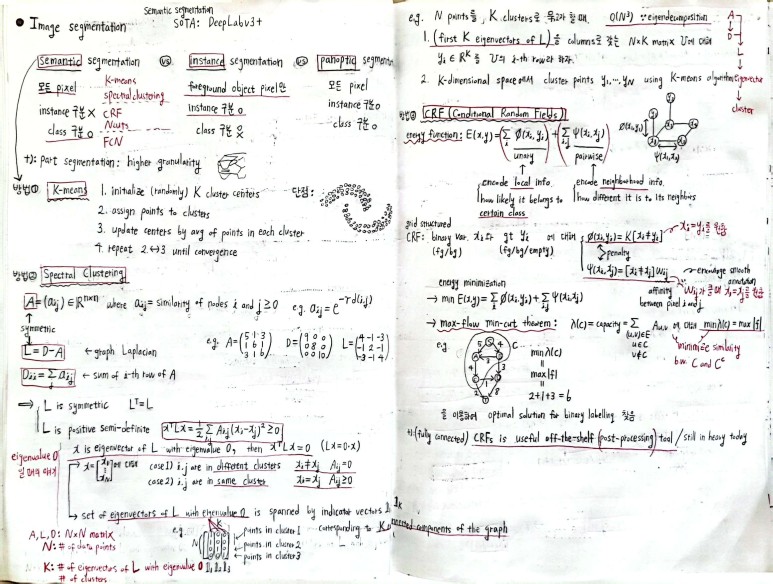

Semantic Segmentation

K-means

Spectral Clustering

A : N x N similarity matrix
\(D_{ii}\) = \(sum_j\)(\(a_{ij}\))
L = D - A

L의 eigenvectors K개를 column으로 갖는 U에 대해 U의 rows를 data points로 보고 clustering

CRF (Conditional Random Fields)

useful post-processing tool (segmentation boundary 향상)

• unary term : K[\(x_i\) != \(y_i\)]
• pairwise term : [\(x_i\) != \(x_j\)]\(w_{ij}\)

max-flow min-cut theorem으로 clustering

단점 : unbalanced isolated clusters

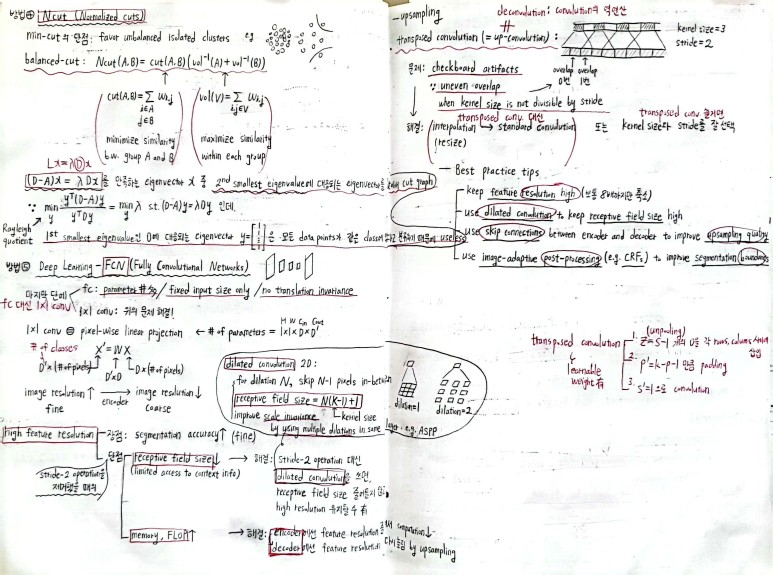

Ncut (Normalized cut)

minimize similarity b.w. different groups 뿐만 아니라 maximize similarity within each group까지 고려

FCN

마지막에 fc layer (단점 : parameter 수 많고, fixed input size, no inductive bias) 대신

1 x 1 conv로 semantic segmentation

high resolution

장점 : high segmentation accuracy

단점 :

• receptive field size 작음 -> dilated convolution으로 보완 (skip N-1 pixels in between, and then receptive field size = N(K-1)+1)
• memory, FLOP 많이 소요 -> encoder - decoder 구조로 보완 (skip-connection 쓰면 better upsampling quality)

upsampling = transposed convolution = up-convolution

!= deconvolution

z = s - 1개의 0을 각 row, column 사이에 삽입 (unpooling)
p’ = k - p - 1개만큼 padding
s’ = 1으로 convolution

문제 : checkboard artifacts -> 해결 : kernel size와 stride를 잘 선택 또는 interpolation(resize)한 뒤 conv

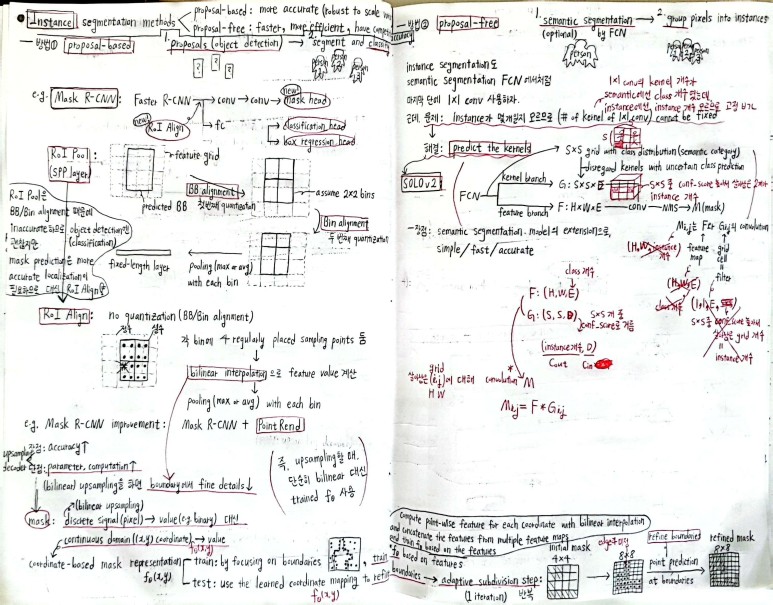

Instance Segmentation

proposal-based (Mask R-CNN)

object detection -> segment and classify

segmentation mask는 object detection보다 localization이 정확해야 하므로 RoI Pool 대신 RoI Align

• RoI Pool : BB alignment -> bin alignment -> SPP
• RoI Align : bilinear interpolation으로 feature value 계산

+) Mask R-CNN 개선 by PointRend :
bilinear upsampling 단점 : computation 많음 / boundary에서 fine detail 떨어짐

-> 해결 : bilinear sampling (discrete pixel -> value) 대신
trained network (continuous (x,y) -> value)로 refine boundaries

proposal-free (SOLOv2)

semantic segmentation -> group pixels

instance 개수 몇 개일지 모르므로 predict the kernels G : S x S x D

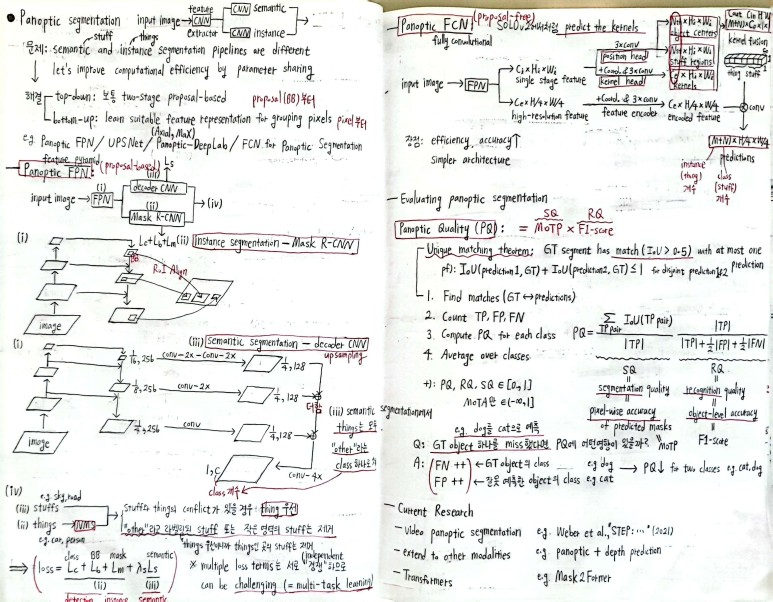

Panoptic Segmentation

proposal-based (Panoptic FPN)

1. FPN
2. decoder CNN (semantic segmentation) 및 Mask R-CNN (instance segmentation)
3. 합침

합칠 때 thing 우선이므로

사실은 thing이라서 “other”로 labelling된 stuff 또는 small region stuff는 제거

instance(class / BB reg / mask) / semantic 으로 총 4가지의 loss term

proposal-free (Panoptic FCN)

SOLOv2에서처럼 predict the kernels

1. FPN
2. position head (\(N_{thing} x H_i x W_i\) / \(N_{stuff} x H_i x W_i\)) 및 kernel head (\(C_{in} x Hi x Wi\))로 kernel fusion \((N_{thing}+N_{stuff}) x C_in x 1 x 1\)

Panoptic Segmentation Evaluation

PQ = SQ x RQ = MOTP x F1-score
under unique matching theorem
